Process flow:

Put the product in manually -- chain operation -- clean: 3 roller brushes, 3 dish brushes -- Rinse: 2 roller brushes, 2 dish brushes -- infrared heating and drying up and down -- take out the product manually.

Field of Application:

PBT-350 on-line PCBA water-based brush cleaning machine is a fast cleaning, high cleaning integration, batch cleaning environmental protection cleaning equipment.Mainly used in military industry, aviation, aerospace, new energy vehicles, vehicle electronic power panel single-sided welds, coated products and high-end precision cleaning products many varieties, large quantities of PCBA board, can effectively clean the DIP/THT PCBA surface after welding residual rosin flux, water-soluble flux, no clean type flux/solder paste and other organic and inorganic pollutants.

Equipment features:• Visualization of the whole process: the cleaning room is equipped with a visual window to make the cleaning process clear at a glance;• Automatic cleaning mode, using chain claw rail transmission, smooth and efficient, automatic disk brush, roller brush process;• Scientific cleaning design: the combination of roller brush and disk brush, roller brush has a forward and backward moving device, completely solve the cleaning blind area, roller brush and disk can be disassembled;• Built-in filter device can realize solvent recycling and reduce solvent consumption;• Comprehensive cleaning system: compatible with running water washing or chemical cleaning, for surface residual water soluble flux, solder paste and other organic and inorganic contaminants for thorough and effective cleaning;• Body material: stainless steel body, acid, alkaline and other cleaning fluid resistance.

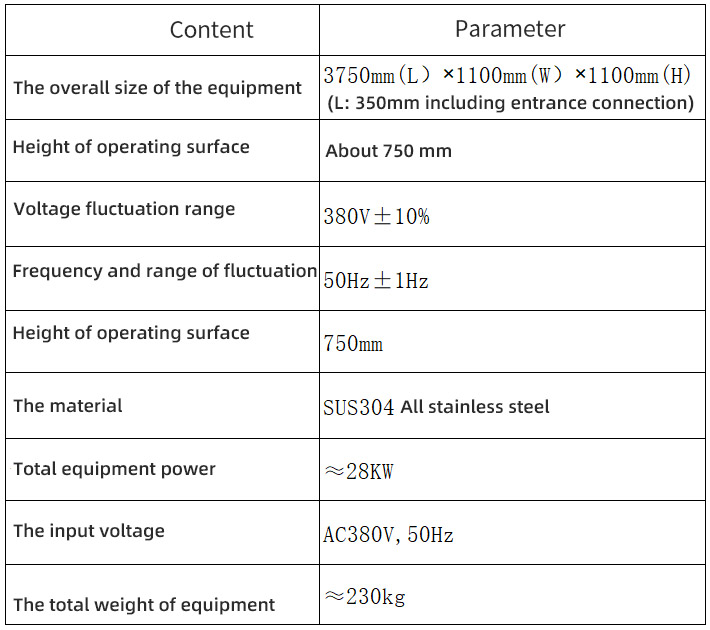

Technical parameters:
