Process flow:

Manually put in the cleaning device - disk 360 degree rotation - pressurized spray centralized filtration cleaning + ultrasonic vibration - recovery of cleaning liquid - pressurized spray centralized filtration rinsing - air cut drying.

Field of Application:

PBT-580 automatic spray rotating cleaning machine is an intelligent, diversified automatic cleaning machine.

•SMT, DIP fixture cleaning, scraper, condenser cleaning, all kinds of workpiece surface cleaning;

• Cleaning all kinds of hardware parts after machining, parts after disassembly of equipment, auto parts, all kinds of shells, boxes and other surfaces and hole wall residual dirt cleaning.

Equipment features:

• Automatic cleaning mode: the product rotates 360 degrees, and the heated cleaning liquid is cleaned automatically by ultrasonic and spraying, then spraying and rinsing, and then hot air drying.• Scientific nozzle design (patent): using left, right, middle 3 spray arm distribution - completely solve the cleaning blind area, spray arm, nozzle can be disassembled;• Cleaning, rinsing using online independent built-in filter system, independent electric pump, independent spray arm, independent nozzle, solvent circulation;• Use, prevent cleaning and rinsing less string liquid, can improve the service life of rinsing water, reduce the amount of solvent;• Full process visualization: automatic door visualization tempered glass window, cleaning process at a glance;• Body material: stainless steel body, acid, alkaline and other cleaning fluid resistance.

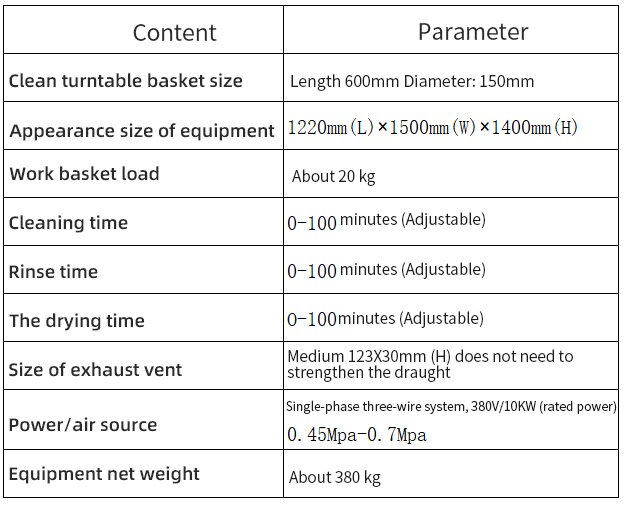

Technical parameters:
